Ceiling Air Diffuser CMP Type:
China Ceiling Air Diffuser CMP Type:
The supply nozzles are capable of delivering air to spaces where long distance penetration and low noise levels are required. Suitable for cold and warm air supply applications, these versatile adjustable units are ideal for providing focused ventilation or where precision is required. When grouped, penetration can be considerably enhanced.
Drawing:
Specification:
| Specification | Inlet DN(D) | Outlet ΦX | L | W | B | Round Diffuser Φc | Flow-rate m³/h | Ceiling opening |
| CMP-15 | DN100 | Φ150 | 550 | 450 | 160 | Φ395 | 0-250 | Φ170 |
| CMP-17 | DN100 | Φ170 | 550 | 450 | 160 | Φ395 | 0-300 | Φ190 |
| CMP-20 | DN125 | Φ200 | 550 | 450 | 180 | Φ395 | 0-380 | Φ220 |
| CMP-25 | DN125 | Φ250 | 600 | 500 | 200 | Φ475 | 0-500 | Φ270 |

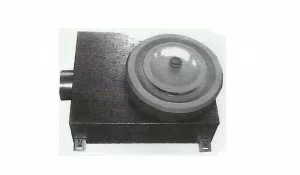

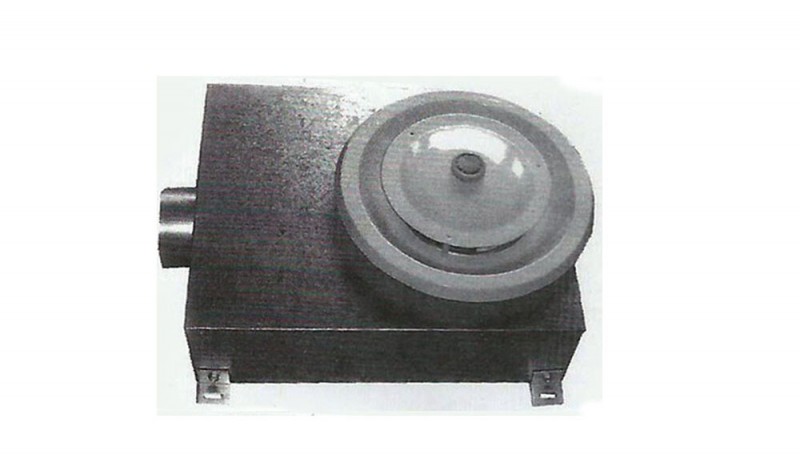

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
