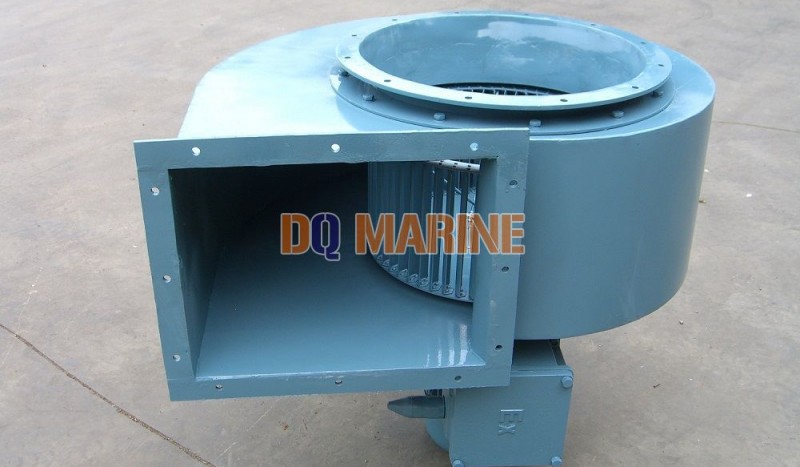

CBL-I Marine Explosion Proof Centrifugal Fan
Category:
Marine Fan
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CBL-I Marine Explosion Proof Centrifugal Fan:
CBL-I Marine Explosion Proof Centrifugal Fan is the Marine Explosion Proof Centrifugal Fan that the motor and fan are directly coupled.
General:

CBL series marine explosion proof centrifugal fan is designed and manufactured according to GB11799-89 (marine explosion proof centrifugal fan), and genearal description and explosion proof electrical equipment "d" of GB3836-83 (electrical apparatus for explosive atomsphere) and Regulations for the Contrustion and classification of sea-going steel shipes.

Application:

It can be used to delivery the gas mixtures or vapour containing combustibles and explosives, ordinary air, sea air containing salt fog, air containing oil fog and other corrupt air supply or extraciton.

This kind of explosion proof fan is suitable to pump out gas mixtures or vapour containing combustibles and explosives in oil tank,cargo tank, pump room,battery cabin,ammunition cabin,hangar,paint house, etc. It also can be used for ventilation of other compartments of shipping and corresponding place on the land.

The fan can be with 380/440/220/415V, 50Hz/60Hz

Structural Types:

Type I- Direct Coupling type. The vane wheel is mounted directly to motor shaft, and the housing is fixed on the flange of the explosion proof motor.

Type II-Separate cabin type. It is a separate structure, the fan and the motor are put into different cabins, with a driving device, a pairs of flexible coupling, and the driving device consists of bearings, bearing box, shaft brass rings, stuffing, it can be refueled and measure the temperature. One side is fixed on the fan, another side is mounted on the bulkhead.

The fan may be made into a horizontal or vertical, single-stage, single-suction, airtight structure.

Features:

1.Explosion proof, safe, reliable in operation.

2. Small size, light weight, low noise.

3.Good anticorrosive.

4. Strongly capable of resisting vacillation,vibration and shocking.

Main Parameter:
Model Folw rate (m3/h) Total pressure (Pa) Static pressure (Pa) speed(r/min) Motor Weight(kgs)
Freq (Hz) Power (kw) Type
TypeⅠ TypeⅡ TypeⅠ TypeⅡ I
CBL-15 500 550 490 2920 50 0.75 1.5 YB801-2-H YB90S-2-H/Y90S-2-H 40 61
800 540 390
600 780 590 3500 60
960 645 470
CBL-16 800 600 490 2920 50 0.75 1.5 YB801-2-H YB90S-2-H/Y90S-2-H 41 62
1200 590 340
960 860 705 3500 60
1400 840 490
CBL-17 800 695 590 2920 50 0.75 1.5 YB801-2-H YB90S-2-H/Y90S-2-H 42 63
1200 685 440
960 1000 840 3500 60
1400 980 635
CBL-18 1200 810 635 2920 50 1.1 1.5 YB802-2-H YB90S-2-H/Y90S-2-H 43 64
1500 810 540
1400 1165 910 3500 60
1800 1165 775
CBL-19 1500 900 735 2920 50 1.5 1.5 YB90S-2-H YB90S-2-H/Y90S-2-H 44 71
2000 880 590
1800 1295 1060 3500 60
2400 1265 840
CBL-20 800 245 195 1460 50 0.75 1.1 YB802-4-H YB90S-4-H/Y90S-4-H 45 67
960 350 285 1750 60
CBL-20 1500 1050 880 2920 50 2.2 3 YB90L-2-H YB100L-2-H/Y100L-2-H 55 80
2000 1030 735
1800 1510 1265 3500 60
2400 1480 1060
CBL-21 2000 1175 930 2920 50 2.2 3 YB90L-2-H YB100L-2-H/Y100L-2-H 58 79
2500 1165 785
2400 1685 1330 3500 60
3000 1675 1125
CBL-22 2500 1275 980 2920 50 2.2 4 YB90L-2-H YB112M-2-H/Y112M-2-H 60 86
3000 1255 830
3000 1830 1410 3500 60 3 YB100L-2-H 63
3600 1805 1195
CBL-23 2500 1400 1175 2920 50 2.2 4 YB90L-2-H YB112M-2-H/Y112M-2-H 62 88
3000 1410 1080
3000 2010 1685 3500 60 4 YB112M-2-H 65
3600 2030 1550
CBL-24 1500 410 340 1460 50 0.75 1.1 YB802-4-H YB90S-4-H/Y90S-4-H 48 75
2000 360 245
1800 590 490 1750 60
2400 520 350
CBL-24 3000 1653 1370 2920 50 3 4 YB100L-2-H YB112M-2-H/Y112M-2-H 69 102
4000 1560 1080
3600 23502 1970 3500 60 5.5 5.5 YB132S1-2-H YB132S1-2-H/Y132S1-2-H 104 127
4800 2235 1550
CBL-25 2000 430 340 1460 50 1.1 1.1 YB90S-4-H YB90S-4-H/Y90S-4-H 59 79
2500 430 295
2400 615 490 1750 60
3000 615 420
CBL-25 4000 1910 1570 2920 50 4 4 YB112M-2-H YB112M-2-H/Y112M-2-H 79 104
4800 2745 2255 3500 60 7.5 7.5 YB132S1-2-H YB132S1-2-H/Y132S1-2-H 110 143
CBL-27 2500 510 390 1460 50 1.5 1.5 YB90L-4-H YB90L-4-H/Y90L-4-H 65 85
3000 510 340
3000 735 560 1750 60
3600 735 490
CBL-29 2500 625 540 1460 50 1.5 1.5 YB90L-4-H YB90L-4-H/Y90L-4-H 68 88
3000 570 440
3000 900 775 1750 60
3600 810 635
CBL-30 3000 645 540 1460 50 1.5 2.2 YB90L-4-H YB100L1-4-H/Y100 L1-4-H 70 101
4000 635 440
3600 930 775 1750 60 2.2 YB100L1-4-H 78
4800 910 635
CBL-32 4000 745 590 1460 50 2.2 3 YB100L1-4-H YB100L2-4-H/Y100L2-4-H 81 106
5000 735 490
4800 1070 840 1750 60 3 YB100L2-4-H 83
6000 1060 705
CBL-33 4000 820 685 1460 50 2.2 3 YB100L1-4-H YB100L2-4-H/Y100L2-4-H 84 109
5000 795 590
4800 1185 990 1750 60 3 YB100L2-4-H 86
6000 1135 840
CBL-34 5000 860 685 1460 50 3 4 YB100L2-4-H YB112M-4-H/Y112M-4-H 87 123
6000 840 590
6000 1235 990 1750 60 4 YB112M-4-H 100
7200 1215 840
CBL36 5000 970 830 1460 50 4 4 YB112M-4-H YB112M-4-H/Y112M-4-H 83 106
6000 930 735
7200 870 590
6000 1390 1195 1750 60 5.5 5.5 YB132S-4-H YB112M-4-H 105 138
7200 1330 1060 Y112M-4-H
8600 1255 840
CBL-37 6000 1010 830 1460 50 4 4 YB112M-4-H YB112M-4-H/Y112M-4-H 108 131
7200 990 735
7200 1450 1195 1750 60 5.5 5.5 YB132S-4-H YB132S-4-H/Y132S-4-H 130 163
8600 1420 1060
CBL-39 6000 490 340 970 50 2.2 2.2 YB112M-6-H YB112M-6-H/Y112M-6-H 111 134
7200 705 490 1160 60
CBL-39 7200 1185 980 1460 50 5.5 7.5 YB132S-4-H YB132M-4-H/Y132M-4-H 138 186
9000 1090 785
8600 1705 1410 1750 60 7.5 YB132M-4-H 153
10800 1560 1125
CBL-40 5000 1215 1080 1460 50 4 4 YB112M-4-H YB112M-4-H/Y112M-4-H 112 135
6000 1175 980
6000 1745 1550 1750 60 7.5 7.5 YB132M-4-H YB132M-4-H/Y132M-4-H 149 182
7200 1685 1410
CBL-42 6000 590 490 970 50 2.2 3 YB112M-6-H YB132S-6-H/Y132S-6-H 123 179
7200 540 390
7200 840 705 1160 60 3 YB132S-6-H 146
8600 775 560
CBL-42 9000 1305 1080 1460 50 7.5 7.5 YB132M-4-H YB132M-4-H 165 198
12000 1285 880 Y132M-4-H
10800 1870 1550 1750 60 11 11 YB160M-4-H YB160M-4-H/Y160M-4-H 218 263
14000 1840 1265
CBL-44 7200 635 490 970 50 3 3 YB132S-6-H YB132M1-6-H/Y132M1-6-H 150 193
9000 600 390
8600 910 705 1160 60 4 YB132M1-6-H 160
10800 860 560
CBL-44 9000 1480 1275 1460 50 11 11 YB160M-4-H YB160M-4-H/Y160M-4-H 222 267
12000 1450 980
10800 2130 1830 1750 60 15 15 YB160L-4-H YB160L-4-H/Y160L-4-H 240 285
14000 2090 1410
CBL-46 9000 675 490 970 50 4 4 YB132M1-6-H YB132M1-6-H/Y132M1-6-H 166 199
10800 970 340 1160 60 5.5 5.5 YB132M2-6-H YB132M2-6-H/Y132M2-6-H 181 214
CBL-46 12000 1610 1275 1460 50 15 15 YB160L-4-H YB160L-4-H/Y160L-4-H 228 273
15000 1500 980
14000 2300 1830 1750 60 18.5 18.5 YB180M-4-H YB180M-4-H/Y180M-4-H 300 245
18000 2155 1410
CBL-48 9000 735 590 970 50 4 4 YB132M1-6-H YB132M1-6-H 169 202
12000 655 390 Y132M1-6-H
10800 1060 840 1160 60 5.5 5.5 YB132M2-6-H YB132M2-6-H/Y132M2-6-H 185 218
14000 940 560
CBL-48 12000 1735 1470 1460 50 15 15 YB160L-4-H YB160L-4-H/Y160L-4-H 249 294
15000 1695 1275
14000 2490 2120 1750 60 22 22 YB180L-4-H YB180L-4-H/Y180L-4-H 353 398
18000 2440 1830
CBL-50 12000 775 540 970 50 5.5 5.5 YB132M2-6-H YB132M2-6-H/Y132M2-6-H 190 223
14000 1110 775 1160 60 7.5 7.5 YB160M-6-H YB160M-6-H/Y160M-6-H 230 275
CBL-50 15000 1830 1470 1460 50 18.5 18.5 YB180M-4-H YB180M-4-H/Y180M-4-H 255 309
18000 1795 1275
18000 2633 2120 1750 60 22 22 YB180L-4-H YB180L-4-H/Y180L-4-H 359 404
21000 2580 1830
CBL-52 12000 930 735 970 50 7.5 7.5 YB160M-6-H YB160M-6-H/Y160M-6-H 241 286
15000 850 540
14000 1330 1060 1160 60 11 11 YB160L-6-H YB160L-6-H/Y160L-6-H 265 310
18000 1225 775
CBL-54 15000 940 685 970 50 7.5 7.5 YB160M-6-H YB160M-6-H/Y160M-6-H 252 297
18000 1350 990 1160 60 11 11 YB160L-6-H YB160L-6-H/Y160L-6-H 276 321
CBL-56 15000 1060 830 970 50 11 11 YB160L-6-H YB160L-6-H/Y160L-6-H 287 312
18000 1010 685
18000 1520 1195 1160 60 15 15 YB180L-6-H YB180L-6-H/YB180L-6-H 382 427
21000 1440 980
CBL-58 18000 1155 880 970 50 15 15 YB180L-6-H YB180L-6-H/Y180L-6-H 393 438
21000 1655 1265 1160 60 18.5 18.5 YB200L1-6-H YB200L1-6-H/Y200L1-6-H 398 455
