CB3062-79 BB Type Four Rollers Fairlead
Category:
Marine Fairlead
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CB3062-79 BB Type Four Rollers Fairlead:
China CB3062-79 BB Type Four Rollers Fairlead:

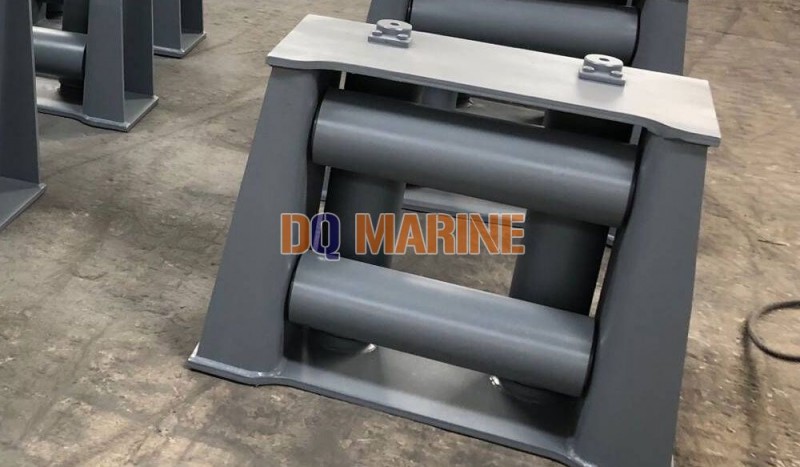

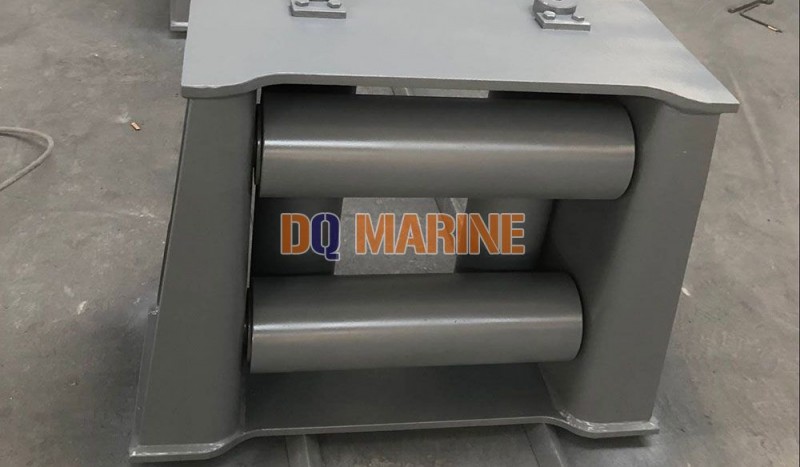

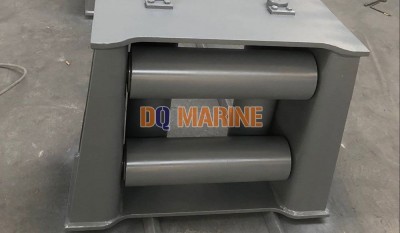

CB3062-79 BB Type Four Rollers Fairlead

Suitable for guide the rope on the vessel.

Frame Material:Q235

Axle And Roller:20# steel.

Specification:
Steel wire dia Nylon wire dia E F D d L L1 L2 L3 B B1 B2 H H1 Weight(kg)
19.5 36 200 150 100 40 644 416 300 544 238 194 108 508 250 155
22.5 40 200 150 120 50 728 456 320 608 280 232 128 552 270 239
26 45 200 180 130 55 776 480 330 646 304 250 138 606 310 306
32 70 220 180 150 65 880 540 370 730 346 288 158 670 330 450
34.5 80 240 200 160 70 940 580 400 780 370 308 168 710 360 576
37.5 85 240 200 180 80 1030 620 420 850 417 345 190 770 380 756
43 95 260 210 200 90 1136 686 460 936 459 385 210 820 410 987
52 100 260 220 230 100 1256 746 490 1026 521 445 240 910 450 1370
60.5 - 300 240 260 120 1430 850 560 1170 590 500 270 1000 500 2008
68 - 320 250 320 150 1690 990 640 1370 714 620 330 1130 570 3352
