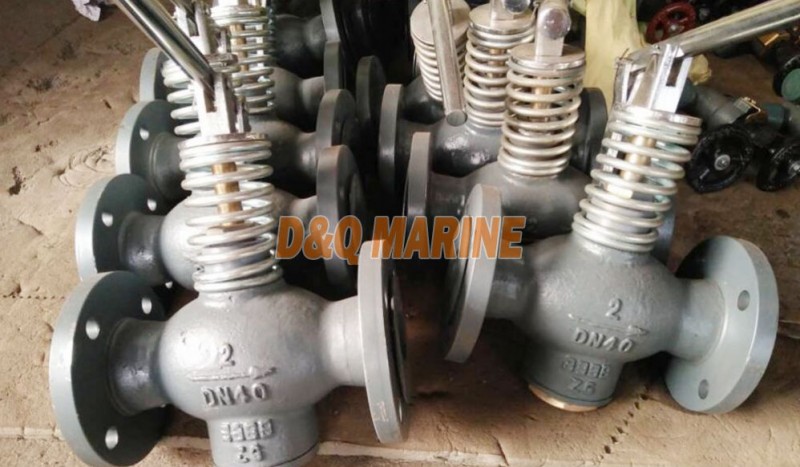

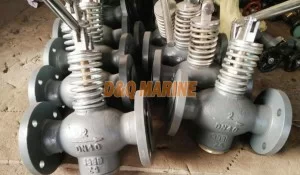

Cast Steel Self-Closing Drain Valve CB/T601-92 Type F
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Cast Steel Self-Closing Drain Valve CB/T601-92 Type F:
China Cast Steel Self-Closing Drain Valve CB/T601-92 Type F:

Marine Self-closing Drain Valve is used on the pipe system with the medium sea water, fresh water, fuel oil, lubrication oil.

Technical Specification:

Design Standard:CB/T601-92

Test Standard: GB600

Thread Standard: CB3019

Type U- one side is with flange, another side is with thread

Type F- two sides are flange connection.

Type Name Nominal pressure(Mpa) Nominal Diameter(mm)
A flange size as per GB569 0.25 15,25,40
AS flange size as per GB2501
Main Parts & Material:

Body: Cast Steel for DN25 & DN40, Bronze for DN15.

Seat: Bronze

Disc: Bronze

Stem: Bronze

Spring: Carbon spring steel wire

Main Size List(mm):

For Type A : (Flange size ad per GB569)

nominal
diameter
Structure Dimension Flange screw end

Lift Range

m

Weight
(kg)
L L1 L2 H H1 δ D D1 D2 b f n d Th. d1 d2
25 136 183 130 168 62 6 105 73 56 12 1 4 13 M42×2 39 29 10 3.1
40 170 203 140 195 80 7 125 93 74 13 1 6 15 –– 13 6.9

For Type AS (Flange size as per GB2501):

nominal
diameter
Structure Dimension Flange screw end

Lift Range

m

Weight
(kg)
L L1 L2 H H1 δ D D1 D2 b f n d Th. d1 d2
15 130 165 120 146 46 4 80 55 40 12 2 4 11 M30×2 27 19 7 1.75
25 160 183 130 168 62 6 100 75 60 14 2 4 11 M42×2 39 29 10 3.64
40 200 203 140 195 80 7 130 100 80 16 3 4 14 –– 13 6.93
