DF-1 Power Box For G.E.A System:
China DF-1 Power Box For G.E.A System:
DF-1 Power Box For G.E.A System
1)Chapter 2 of Part 4 of the"Steel Ship Classification Rules" of the China Classification Society:
2)Chapter, of MSC.48(66) international life-saving appliance code(LSA),and its amendment MSC.218(82);
3)IMO resolution A.1021 (26) code on alerts and indicators,2009.
.jpg)

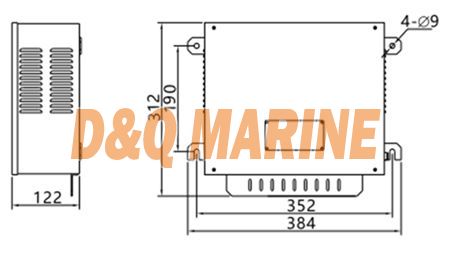

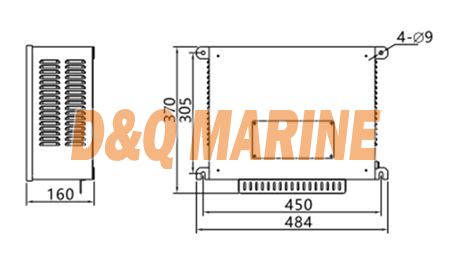

| NO. | Power | power | (A/B/C/D/F)mm Size | Cable gland | Power supply | Colour | Shell material | IP rating |
| 1 | 100w(cargo ship) | 150w | 352/340/246/275/100/8.5 | 8xPG21 10xPG16 | 1xAC220V, 1xDC24V or 2xAC220V ,1xDC24V (passenger ship) | WhiteRAL703 | Q235B | IP22 |
| 2 | 200w(cargo ship) | 250w | 352/384/190/312/122/8.5 | 8xPG21 10xPG16 | Q235B | IP22 | ||
| 3 | 600w(cargo ship) | 750w | 450/484/305/375/160/9 | 8xPG21 10xPG16 | Q235B | IP22 | ||
| 4 | 200w(passenger ship) | 250w | 352/384/190/312/122/8.5 | 8xPG21 10xPG16 | Q235B | IP22 | ||
| 5 | 600w(passenger ship) | 750w | 450/484/305/375/160/9 | 8xPG21 10xPG16 | Q235B | IP22 |
