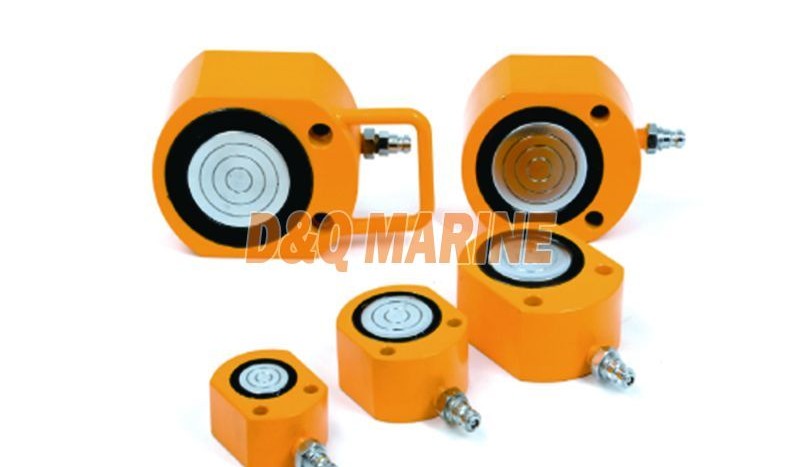

Ultra-Thin Hydraulic Jack
China Ultra-Thin Hydraulic Jack:
Ultra-Thin Hydraulic Jack
Product features:
Single acting, spring return.
Dust ring design reduces pollution and prolongs service life.
Lightweight and compact design for tight spaces
The piston is welded with copper to increase wear resistance; the piston rod is electroplated with 40Cr to increase hardness and prevent air corrosion.
| Model | Sync top model | Capacity T | Stroke mm | Area cm² | Capacity cm3 | Height mm | Max Height mm | Diameter mm | Weight Kg | ||
| RSM-50 | TRSM-50 | 5 | 6 | 6.4 | 4 | 33 | 39 | 59x41 | 1 | ||
| RSM-100 | TRSM-100 | 10 | 11 | 14.5 | 16 | 43 | 54 | 83x56 | 1.4 | ||
| RSM-200 | TRSM－200 | 20 | 11 | 28.6 | 31 | 52 | 63 | 102x76 | 3.1 | ||
| RSM-300 | TRSM-300 | 30 | 13 | 42 | 55 | 59 | 72 | 118x95 | 4.5 | ||
| RSM-500 | TRSM-500 | 50 | 16 | 62.1 | 99 | 67 | 83 | 140x114 | 6.8 | ||
| RSM-750 | TRSM-750 | 75 | 16 | 102.7 | 164 | 80 | 96 | 165x139 | 11.4 | ||
| RSM-1000 | TRSM-1000 | 100 | 16 | 126.8 | 203 | 86 | 102 | 178x152 | 14.5 | ||
| RSM-1500 | TRSM-1500 | 150 | 16 | 198.1 | 277 | 100 | 116 | 216x191 | 26.3 | ||
| RSM-1530 | TRSM-1530 | 150 | 30 | 198.1 | 610 | 140 | 170 | 216x191 | 35 | ||
