DN/HN Series-Hydraulic Nut

Category: Marine Machine Tool

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

Dowdload Page

We can supply according to your requirement.

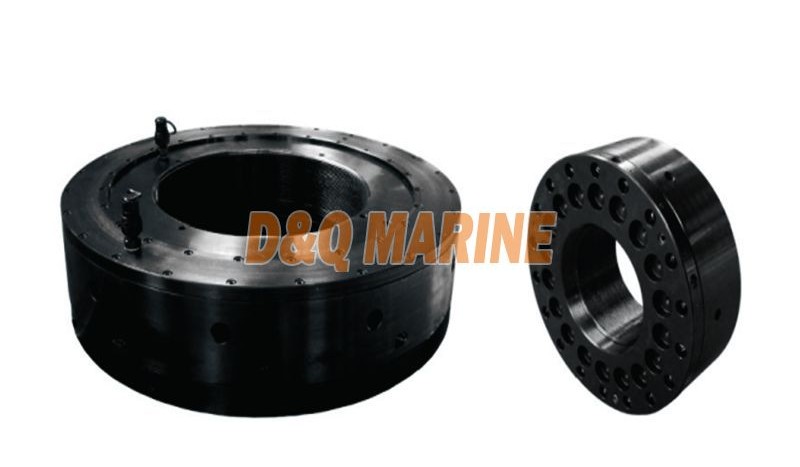

DN/HN Series-Hydraulic Nut

China DN/HN Series-Hydraulic Nut:

DN/HN Series-Hydraulic Nut

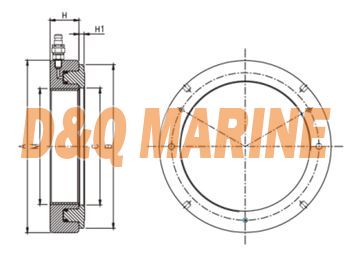

Model	Thread specification	Outside diameter	Outer diameter of pressure ring	Inner diameter of pressure ring	Cylinder height	Ring height	Stroke	Cylinder Effective Area Advance	Maximum Cyllinder Capacity Advance	Weight

	M	A	B	C	H	H1	mm	cm2	KN	kg
	mm	mm	mm	mm	mm	m
HMV50	M50X1.5	114	104	50.5	38	4	5	29	290	2.7
HMV55	M55X2	120	109	55.5	38	4	5	31.5	315	2.75
HMV60	M60X2	125	115	60.5	38	5	5	33	330	2.8
HMV65	M65X2	130	121	65.5	38	5	5	36	360	3
HMV70	M70X2	135	127	70.5	38	5	5	38	380	3.2
HMV75	M75X2	140	132	75.5	38	5	5	40	400	3.4
HMV80	M80X2	146	137	80.5	38	5	5	42	420	3.7
HMV85	M85X2	150	142	85.5	38	5	5	44	440	3.75
HMV90	M90X2	156	147	90.5	38	5	5	47	470	4
HMV95	M95X2	162	153	95.5	38	5	5	49	490	4.3
HMV100	M100X2	166	158	100.5	38	6	5	51	510	4.4
HMV105	M105X2	172	163	105.5	38	6	5	53	530	4.65
HMV110	M110X2	178	169	110.5	38	6	5	56	560	4.95
HMV115	M115X2	182	174	115.5	38	6	5	58	580	5
HMV120	M120x2	188	179	120.5	38	6	5	60	600	5.25
HMV125	M125X2	192	184	125.5	38	6	5	62	620	5.35
HMV130	M130x2	198	190	130.5	38	6	5	64	640	5.65
HMV135	M135X2	204	195	135.5	38	6	5	66	660	5.9
HMV140	M140X2	208	200	140.5	38	7	5	68	680	6
HMV145	M145X2	214	206	145.5	39	7	5	73	730	6.5
HMV150	M150X2	220	211	150.5	39	7	5	75	750	6.6
HMV155	M155X3	226	218	155.5	39	7	5	81	810	6.95
HMV160	M160X3	232	224	160.5	40	7	6	86	860	7.6
HMV165	M165X3	238	229	165.5	40	7	6	89	890	7.9
HMV170	M170X3	244	235	170.5	41	7	6	94	940	8.4
HMV180	M180X3	256	247	180.5	41	7	6	103	1030	9.15
HMV190	M190X3	270	259	191	42	8	7	115	1150	10.5
HMV200	M200X3	282	271	201	43	8	8	125	1250	11.5
HMV205	Tr205X4	288	276	207	43	8	8	128	1280	12
HMV210	Tr210x4	294	282	212	44	8	9	134	1340	12.5
HMV215	Tr215X4	300	287	217	44	8	9	137	1370	13
HMV220	Tr220X4	306	293	222	44	8	9	144	1440	13.5
HMV225	Tr225X4	312	300	227	45	8	9	152	1520	14.5
HMV230	Tr230X4	318	305	232	45	8	9	155	1550	15
HMV235	Tr235X4	326	311	235	46	8	10	162	1620	16
HMV240	Tr240X4	330	316	242	46	9	10	165	1650	16.5
HMV250	Tr250X4	342	329	252	46	9	10	176	1760	17.5
HMV260	Tr260X4	356	341	262	47	9	11	188	1880	19.5
HMV270	Tr270X4	368	352	272	48	9	12	198	1980	20.5
HMV280	Tr280X4	380	363	282	49	9	12	211	2110	22

Model	Thread specification	Outside diameter	Outer diameter of pressure ring	Inner diameter of pressure ring	Cylinder height	Ring height	Stroke	Cylinder Effective Area Advance	Maximum Cyllinder Capacity Advance	Weight

	M	A	B	C	H	H1	mm	cm2	KN	kg
	mm	mm	mm	mm	mm	m
HMV290	Tr290X4	390	375	292	49	9	13	224	2240	22.5
HMV300	Tr300×4	404	386	302	51	10	14	236	2360	25.5
HMV310	Tr310X5	416	397	312	52	10	14	249	2490	27
HMV320	Tr320X5	428	409	322	53	10	14	263	2630	29.5
HMV330	Tr330X5	438	419	332	53	10	14	270	2700	30
HMV340	Tr340X5	450	430	342	54	10	14	284	2840	31.5
HMV345	Tr345X5	456	436	347	54	10	14	294	2940	32.5
HMV350	Tr350X5	464	442	352	56	10	14	299	2990	35
HMV360	Tr360X5	472	455	362	56	10	15	313	3130	35.5
HMV365	Tr365X5	482	460	367	57	11	15	317	3170	38.5
HMV370	Tr370X5	486	466	372	57	11	16	328	3280	39
HMV380	Tr380X5	498	476	382	58	11	16	335	3350	40.5
HMV385	Tr385X5	504	483	387	58	11	16	347	3470	41
HMV400	Tr400X5	522	499	402	60	11	17	367	3670	45.5
HMV410	Tr410X5	534	510	412	61	11	17	383	3830	48
HMV420	Tr420X5	546	522	422	61	11	17	400	4000	50
HMV430	Tr430X5	556	532	432	62	11	17	408	4080	52.5
HMV440	Tr440X5	566	543	442	62	12	17	425	4250	54
HMV450	Tr450X5	580	554	457	64	12	17	441	4410	57.5
HMV460	Tr460X5	590	565	462	64	12	17	451	4510	60
HMV470	Tr470X5	602	576	472	65	12	18	469	4690	62
HMV480	Tr480X5	612	587	482	65	12	19	486	4860	63
HMV490	Tr490X5	624	597	492	66	12	19	495	4950	66
HMV500	Tr500X5	636	609	502	67	12	19	515	5150	70
HMV510	Tr510X6	648	624	512	68	12	20	533	5330	74
HMV520	Tr520X6	658	634	522	68	13	20	543	5430	75
HMV530	Tr530X6	670	645	532	69	13	21	562	5620	79
HMV540	Tr540X6	682	657	542	69	13	21	582	5820	81
HMV550	Tr550X6	693	667	552	70	13	21	592	5920	84
HMV560	Tr560X6	704	678	562	71	13	22	612	6120	88
HMV570	Tr570X6	716	689	572	72	13	23	632	6320	91
HMV580	Tr580X6	726	699	582	72	13	23	642	6420	94
HMV600	Tr600X6	748	721	602	73	13	23	673	6730	100
HMV630	Tr630X6	782	754	632	74	14	23	729	7290	110
HMV650	Tr650X6	804	775	652	75	14	23	762	7620	115
HMV670	Tr670X6	826	796	672	76	14	24	795	7950	120
HMV690	Tr690X6	848	819	692	77	14	25	842	8420	127
HMV710	Tr710X7	870	840	712	78	15	25	877	8770	135
HMV750	Tr750X7	912	883	752	79	15	25	952	9520	146
HMV800	Tr800X7	965	936	802	80	16	25	1039	10390	161
HMV850	Tr850X7	1020	990	857	83	16	26	1146	11460	181
HMV900	Tr900x7	1075	1043	902	86	17	30	1241	12410	205
HMV950	Tr950X8	1126	1097	952	86	17	30	1357	13570	218
HMV1000	Tr1000X8	1180	1150	1002	88	17	34	1458	14580	239
