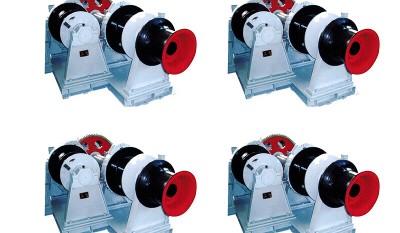

80KN Hydraulic Mooring Winch
10-150KN Hydraulic Mooring Winch
The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weigthing.
Drawing
Technical specifications
| Names | Drum Load (KN) | Nominal Speed (m/min) | Rope Diameter (mm) | Cable Capacity (m) | Remarks |
| 10KN Hydraulic Auehor Winch | 10 | 9 | 11 | 150 | |
| 40KN Hydraulic Auehor Winch | 40 | 9 | 26 | 150 | |
| 30KN Hydraulic Mooring Winch | 30 | 15 | 17.5 | 150 | |
| 40KN Hydraulic Mooring Winch | 40 | 15 | 45 | 160 | Nylon Rope |
| 80KN Hydraulic Mooring Winch | 80 | 15 | 65 | 180 | Nylon Rope |
| 100KN Hydraulic Mooring Winch | 100 | 15 | 65 | 200 | Nylon Rope |
| 150KN Hydraulic Mooring Winch | 150 | 15 | 75 | 240 | Nylon Rope |
