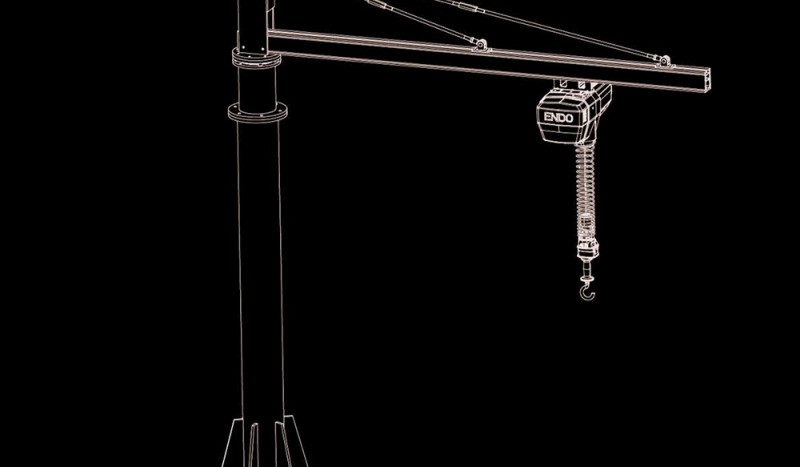

4m×4m Cantilever crane
4m×4m Cantilever crane
1. During the operation, it is suitable for short distance, frequent use and intensive lifting operation. It has the characteristics of high efficiency, energy saving, small floor space, easy operation and maintenance.
2. The mobile cantilever crane is flexible and maneuverable, and its applicability is a single emergency lifting device necessary for efficient automatic production line. It can ensure the smooth and unhelpful production line.
Product advantages
1. The hollow type rigid structure circular tube is stable and durable and is not easily deformed.2. The cylinder body has a light weight and a large weight, which is economical and durable.
3. It adopts special engineering plastic wheel with rolling bearing, which has small friction and light movement.
Technical Specification
| Below 4m*4m production standard | |||||
| Load(t) | 0.5 | 1 | 2 | 3 | 5 |
| Column | φ370×10mm | φ406×12mm | φ426×12mm | φ508×12mm | φ630×12mm |
| I-beam | 30 | 32 | 36 | 45 | 56 |
| Swing speed(r/min) | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 |
| Running speed(m/min) | 20 | ||||
| Lifting speed(m/min) | 8 | ||||
Note:Products can be customized according to customer requirements.
