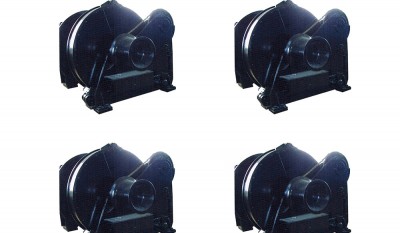

300Kn Hydraulic Towing Winches:
100-300Kn Hydraulic Towing Winches
The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weigthing.
Drawing
Technical specifications
| Drum Load | 200 KN | 100 KN | 300 KN | ||
| Nominal Speed | 11 m/min | 0-6 m/min | 11/33 m/min | ||
| Maximum Bollard Pull | 92 KN | ||||
| Holding Load | 1300 KN | 700 KN | 1500 KN | ||
| Cable Wire Diameter | ¢48 | ¢52 | ¢48 | ||
| Drum Rope Capacity | 500 M | 900 M | 600 M | ||
| Warping End Pull | 50 KN | 510 KN | |||
| Hydraulic Drive System | |||||
| Type | HMC-280 | HT4-6000 | HMC-125/40 | ||
| Discharge Capacity | 1475/740 ml/r | 6110 ml/r | 2048/655 ml/r | ||
| Rated Pressure | 16 Mpa | 16 Mpa | 16 Mpa | ||
| Highest Pressure | 25 Mpa | 25 Mpa | 25 Mpa | ||
| Speed Range | 0-60 r/min | ||||
|
Oil Motor's Terminal Differential Pressure |
15 Mpa | 15 Mpa | 19/10.5 | ||
| Oil Motor's Flow Rate | 140 L/min | 60 L/min | 240 L/min | ||
