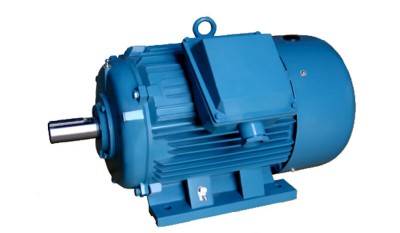

YD-H Series Mutiple-speed Three-phase Marine Induction Motor:
China YD-H Series Mutiple-speed Three-phase Marine Induction Motor:
YD-H Series is a deriving series of YH series marine use three-phase induction motors. It is able to change its poles and rotation speeds according to various loadings, so as to match with the powers and to simplify speed-changing system. It has the features of high efficiency, energy saving, large starting torque, low noise and small vibration.
| Main Technical Data | ||||
| Model |
Power Kw |
Current A |
Speed r/min |
Connection way |
| YD801-4/2-H | 0.45 | 1.4 | 1420 | △/YY |
| YD802-4/2-H | 0.55 | 1.7 | 1420 | |
| YD90S-4/2-H | 0.85 | 2.3 | 1415 | |
| YD90L-4/2-H | 1.3 | 3.3/3.0/2.7 | 1410 | |
| YD90S-6/4-H | 0.65 | 2.3 | 920 | |
| YD90L-6/4-H | 0.85 | 2.8 | 925 | |
| YD90L-8/4-H | 0.45 | 1.9 | 670 | |
| YD90S-8/4-H | 0.35 | 1.6 | 675 | |
| YD90L-8/6-H | 0.45 | 1.9 | 680 | |
| YD100L1-4/2-H | 2 | 4.8 | 1435 | |
| YD100L2-4/2-H | 2.4 | 5.6 | 1430 | |
| YD100L1-6/4-H | 1.3 | 3.8 | 940 | |
| YD100L2-6/4-H | 1.5 | 4.3 | 945 | |
| YD100L-8/4-H | 0.85 | 3.1 | 710 | |
| YD100L-8/6-H | 0.75 | 2.9 | 710 | |
| YD100L-6/4/2-H | 0.75 | 2.6 | 950 | |
| YD112M-4/2-H | 3.3 | 7.4 | 1460 | |
| YD112M-6/4-H | 2.2 | 5.7/5.2/4.6 | 945 | |
| YD112M-8/4-H | 1.5 | 5 | 690 | |
| YD112M-8/6-H | 1.3 | 4.5 | 690 | |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
