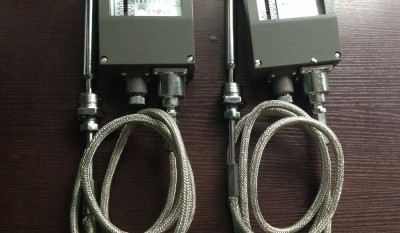

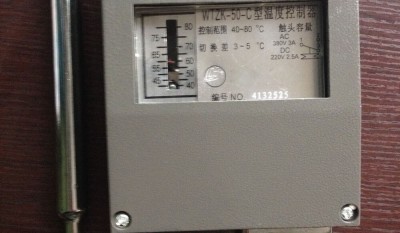

WTZK-50-C Temperature Controller
Product Description:
It is an electrical switch that can make electric circuit close or open according to the change of controlled medium temperature. It can be used In ship,freeze equipment or other industrial equipment,carry two position controlling to the temperature of gas,liquid or steam.
Main Technical Specification:
| Item No. | Temperature regulated range(℃) | Adjustment range of differential gap(℃) | Error or set value(℃) | Error of repeatiblity(℃) | Contact capacity | Protection |
| 1 | -25~0 | 3~5 | ±2 | ≤2 | AC380V 3A DC220V 2.5A | IP44 |
| 2 | -0.5~15 | |||||
| 3 | 10~40 | |||||
| 4 | 40~80 | |||||
| 5 | 60~100 | ±3 | ||||
| 6 | 80~120 | |||||
| 7 | 110~150 | |||||
| 8 | 130~170 |
