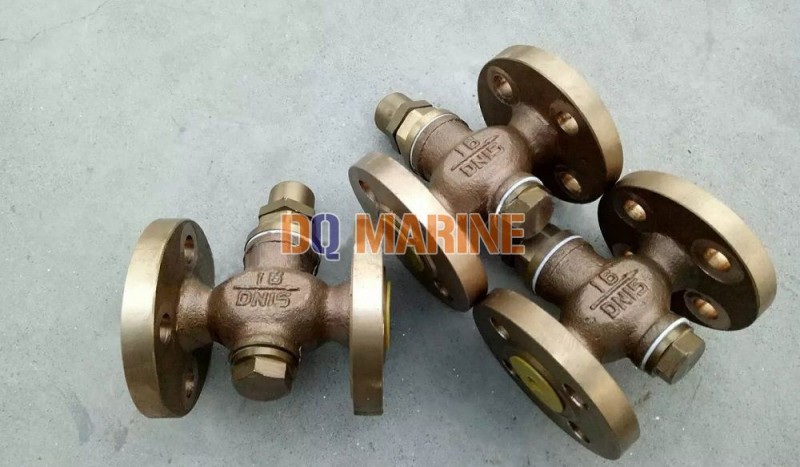

Thermostatic Steam Trap
China Thermostatic Steam Trap:
Marine steam trap is a kind of valve, also known as a trap, drainage valve, removes condensate water, air and carbon dioxide gas from the steam system as soon as possible, while maximize the automatic prevention of steam leakage.
Main Parts & Material:
1. Body---Bronze
2. Valve Bonnet---Brass
3. Seat/Disc---Brass
4. Spring/Filter Screen/Filter Cylinder---Stainless Steel
5. Seat Ring---PTFE
Main Size:
| Nominal Size | Model No | L | H | D | D1 | D2 | b | d0 | n | Weight(kgs) |
| DN20 | 20F | 115 | 75 | 95 | 68 | 48 | 14 | 13 | 4 | 2.3 |
| DN25 | 25F | 120 | 75 | 105 | 73 | 56 | 14 | 13 | 4 | 2.6 |
| DN32 | 32F | 130 | 100 | 115 | 83 | 64 | 15 | 15 | 6 | 3.7 |
| DN40 | 40F | 140 | 100 | 125 | 93 | 74 | 16 | 15 | 6 | 4.6 |
| DN50 | 50F | 150 | 100 | 135 | 103 | 84 | 16 | 15 | 6 | 6.3 |
| DN15 | 15FS | 110 | 75 | 95 | 65 | 47 | 14 | 14 | 4 | 2 |
| DN20 | 20FS | 115 | 75 | 105 | 75 | 58 | 16 | 14 | 4 | 2.8 |
| DN25 | 25FS | 120 | 75 | 115 | 85 | 68 | 16 | 14 | 4 | 3.3 |
| DN32 | 32FS | 130 | 100 | 140 | 100 | 78 | 16 | 18 | 4 | 5.8 |
| DN40 | 40FS | 140 | 100 | 150 | 110 | 88 | 16 | 18 | 4 | 6.9 |
| DN50 | 50FS | 150 | 100 | 165 | 125 | 102 | 18 | 18 | 4 | 9.7 |
