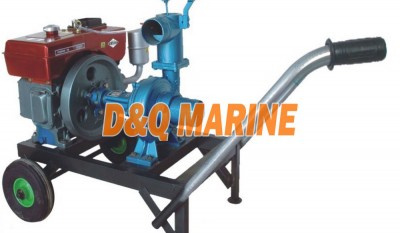

Single Cylinder Diesel Pump
The Technical parameter of Single cylinder diesel pump
|
Set
|
Model
|
WP50-165
|
WP80-175
|
|
Name
|
Diesel engine water pump
|
|
Inlet/Outlet diameter
|
50mm(2")
|
80mm(3")
|
|
Cont. Capacity(m3/h)
|
30
|
50
|
|
Cont. Head lift(m)
|
25
|
15
|
|
Max.Suction head(m)
|
8
|
8
|
|
Engine
|
Engine model
|
R165B
|
R175B
|
|
Engine type
|
Single
cylinder,4-stroke,air cooled, gasoline engine
|
|
BorexStroke(mm)
|
65x80
|
75x80
|
|
Displacement(ml)
|
353
|
373
|
|
Rated power(kw)
|
2.43
|
4.63
|
|
Max.output power(HP)
|
4
|
6
|
|
Rated spee(RPM)
|
2000
|
2000
|
|
Fuel type
|
0#(summer), -10#(winter)
|
|
Oil type
|
SAE1W-30,15W-40
|
|
starting method
|
Recoil start
|
|
Fuel tank capacity(L)
|
4
|
4
|
|
Oil capacity(L)
|
2
|
2
|
|
Pack
|
Packing size(mm)
|
1200x630x850
|
1200x630x850
|
|
Net weight(Kgs)
|
100
|
100
|
|
Gross weight(Kgs)
|
120
|
120
|
