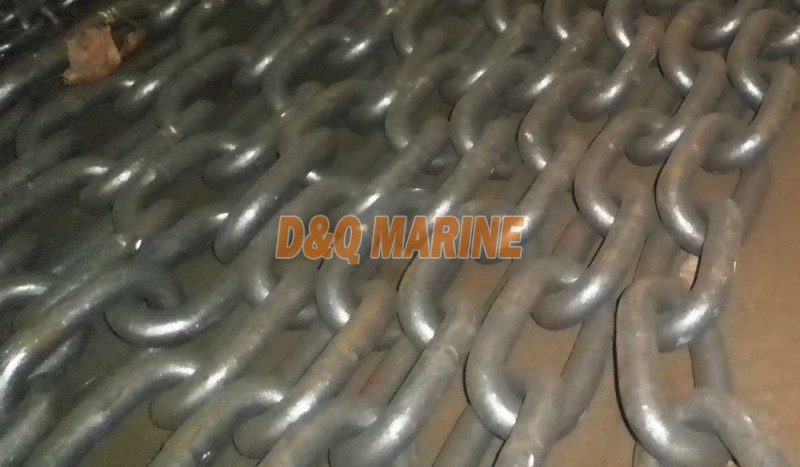

Open Link Anchor Chain
Category:
Anchor Chain
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Open Link Anchor Chain:
China Open Link Anchor Chain:

Open Link Anchor Chain:

Material: Alloy Steel

Size: 12.5mm to 50mm

Certificate: ABS,LR,BV,CCS

Diamter CHAIN LINK SIZE BM2 BM3 APPROX. WEIGHT
U2 OPEN LINK CHAIN U3 OPEN LINK CHAIN
OUTSIDE LENGTH OUTSIDE WIDTH PROOF LOAD BREAKING LOAD PROOF LOAD BREAKINGLOAD KG/27.5M
MM MM MM KN KN KN KN
12.5 75 45 41.2 82.6 56.4 112.8 85.41
14 84 50.4 51 101.9 70.76 141.51 106.55
16 96 57.6 66.2 132.3 92.42 184.83 139.43
17.5 105 63 78.89 157.78 110.55 221.1 178.35
19 114 68.4 93.6 187.2 130.32 260.64 217.68
20.5 123 73.8 108.64 217.27 151.7 303.42 229.14
22 132 79.2 125.4 250.9 174.4 349.4 264.49
24 144 86.4 149.9 298.9 207.9 415.8 341.82
26 156 93.6 175.4 350.8 244 488 369.94
28 168 100.8 203.8 406.7 283 566 427.04
30 180 108 234.2 467.5 324.9 649.8 490.98
32 192 115.2 265.6 531.2 369.6 739.3 559.65
34 204 122.4 299.9 599.8 417.3 834.6 671.52
36 216 129.6 336.1 672.3 467.8 935.7 707.85
38 228 136.8 374.4 748.7 521.3 1042.5 788.98
40 240 144 414.5 829.1 577.6 1155.2 869.36
42 252 151.2 457.7 915.3 636.8 1273.6 959.3
44 264 158.4 502.7 999.6 698.9 1398 1111.25
46 276 165.6 548.8 1097.6 763.9 1527.8 1152.07
48 288 172.8 597.8 1195.6 831.7 1663.5 1256.26
50 300 180 648.8 1239.6 902.5 1805 1360.41
52 312 187.2 697.63 1395.26 976.14 1952.28 1485.61
54 324 194.4 752.33 1504.66 1052.68 2105.36 1648.08
56 336 201.6 809.09 1618.18 1132.1 2264.2 1715.97
58 348 208.8 867.91 1735.82 1214.4 2428.8 1844.5
60 360 216 928.8 1857.6 1299.6 2599.2 1973.29
62 372 223.2 991.75 1983.5 1387.68 2775.36 2101.56
64 384 230.4 1056.77 2113.54 1478.66 2957.32 2298.47
66 396 237.6 1123.85 2247.7 1572.52 3145.04 2398.1
68 408 244.8 1192.99 2385.98 1669.26 3338.52 2522.88
70 420 252 1264.2 2528.4 1768.9 3537.8 2697.65
