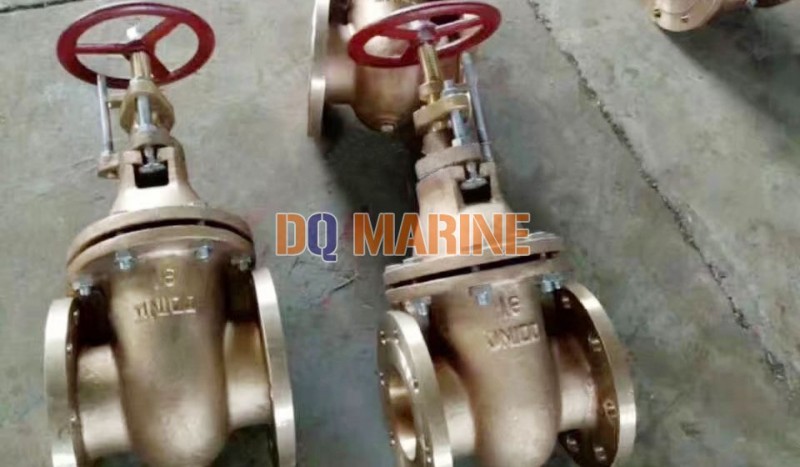

Marine Bronze Flanged Gate Valve CB/T467-1995

China Marine Bronze Flanged Gate Valve CB/T467-1995:

Marine bronze gate valve CB/T467-1995 is used on the pipe system for sea water, fresh water and oil to open/close the pipe system.

Technical Specification:

Design Standard: CB/T467-1995

Test Standard: GB600

Flange Size as per GB569 or GB2501

Type Nominal Pressure (Mpa) Nominal Diameter (mm) Applicable medium
A、AS 0.6 40～150 sea water, fresh water, oil
0.4 175～300
0.25 350～500
Main Parts & Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Stem-Bronze

Nut-Bronze

Main Size List(mm):

For Type A (as per GB569):

PN
MPa 		DN
(mm) 		Structure Dimension Flange Bolt stem hand
wheel
D0 		Lift Range m Weight
(kg)
L≈ H≈
D D1 D2 b d0 n Th. d □
0.6 40 170 330 125 93 74 13 15 6 M14 Tr20×8(P4)LH 14 160 48 15
50 190 340 135 103 84 13 15 6 M14 Tr22×10(P5)LH 14 180 60 18
65 200 372 155 123 104 14 15 6 M14 Tr22×10(P5)LH 14 180 75 20
80 220 430 170 138 116 14 15 8 M14 Tr24×10(P5)LH 17 200 92 25
100 220 460 190 158 138 14 15 8 M14 Tr24×10(P5)LH 17 200 112 28
125 242 528 215 183 164 14 15 10 M14 Tr26×10(P5)LH 19 225 138 41
150 248 566 240 208 190 14 15 12 M14 Tr26×10(P5)LH 19 225 165 51
0.4 175 268 630 270 236 221 15 15 12 M14 Tr28×10(P5)LH 22 250 190 70
200 278 685 295 264 247 15 15 12 M14 Tr28×10(P5)LH 22 250 215 80
250 310 755 365 327 306 16 17 14 M16 Tr30×12(P6)LH 24 280 265 111
300 345 835 430 386 360 19 21 14 M20 Tr30×12(P6)LH 24 280 315 134
0.25 350 400 954 480 436 410 20 21 16 M20 Tr36×12(P6)LH 27 320 365 226
400 430 1045 530 486 460 21 21 16 M20 Tr36×12(P6)LH 27 360 418 274

For Type AS (as per GB2501):

PN
MPa 		DN
(mm) 		Structure Dimension Flange Bolt stem hand
wheel
D0 		Lift Range m Weight
(kg)
L≈ H≈
D D1 D2 b d0 n Th. d □
0.6 40 165 330 130 100 80 16 14 4 M12 Tr20×8(P4)LH 14 160 48 17
50 178 340 140 110 90 16 14 4 M12 Tr22×10(P5)LH 14 180 60 21
65 190 372 160 130 110 16 14 4 M12 Tr22×10(P5)LH 14 180 75 25
80 203 430 190 150 128 18 18 4 M16 Tr24×10(P5)LH 17 200 92 36
100 229 460 210 170 148 18 18 4 M16 Tr24×10(P5)LH 17 200 112 44
125 254 528 240 200 178 20 18 8 M16 Tr26×10(P5)LH 19 225 138 66
150 267 566 265 225 202 20 18 8 M16 Tr26×10(P5)LH 19 225 165 75
0.4 175 292 630 295 255 232 22 18 8 M16 Tr28×10(P5)LH 22 250 190 90
200 292 665 320 280 258 22 18 8 M16 Tr28×10(P5)LH 22 250 215 115
250 330 755 375 335 312 24 18 12 M16 Tr30×12(P6)LH 24 280 265 160
300 356 835 440 395 365 24 22 12 M20 Tr30×12(P6)LH 24 280 315 210
0.25 350 381 1050 490 445 415 26 22 12 M20 Tr36×12(P6)LH 27 320 365 305
400 406 1145 540 495 465 28 22 16 M20 Tr36×12(P6)LH 27 360 418 380
450 432 1330 595 550 520 28 22 16 M20 Tr40×12(P6)LH 32 400 468 570
500 457 1420 645 600 570 30 22 20 M20 Tr40×12(P6)LH 32 450 518 635
