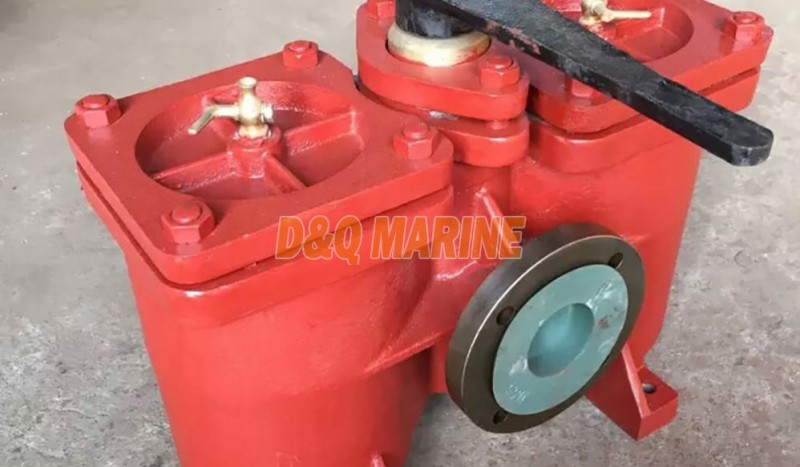

Low Pressure Coarse Oil Filter CB/T425-2011

China Low Pressure Coarse Oil Filter CB/T425-2011:

Low Pressure Coarse Oil Filter is used to filter the oil on the pipe system of fuel oil or lubrication oil.

Technical Specification:

Design Standard: CB/T425-94

Test Standard: GB/T600

Flange Size Standard: GB569 or GB2501 (Type A-GB569, Type AS-GB2501)

Test Pressure: Body--0.6Mpa and last 3minutes, Seal---0.44Mpa and last 1minute.

nominal pressure (Mpa) nominal diameter(mm) applicable medium
0.4 20-100 fuel oil, lubrication oil
Main Parts & Material:

Body-Cast Iron(HT200)

Cover-Cast Iron(HT200)

Core Plug-Bronze

Magnetic Plate-Magnetic Steel

Filter Screen-Brass or stainless Steel

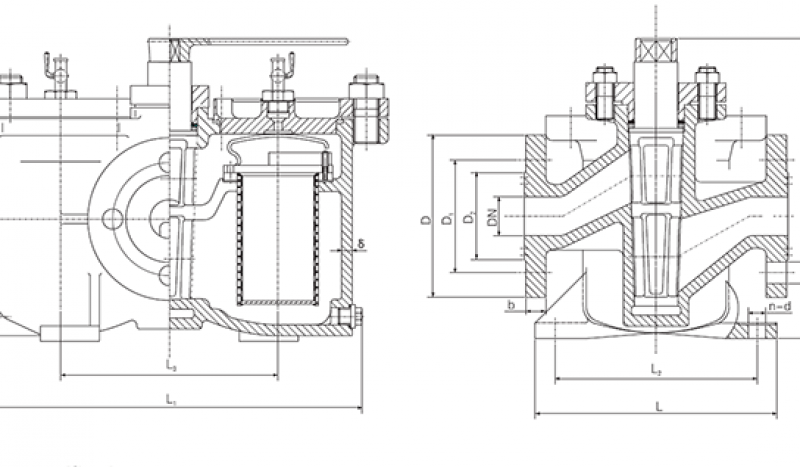

Main Size List(mm):

For Type A:

nominal
diameter 		Structure Dimension Thickness δ Flange Bolt Footing Weight(kg)
H L1 L
D D1 D2 d b n Th. L2 L3 n d
20 218 223 145 7 95 68 48 13 14 4 M12 115 125 4 11 11
25 238 252 170 7 105 73 56 13 14 4 M12 130 140 4 11 13
32 265 292 195 7 115 83 64 15 15 6 M14 145 165 4 11 16
40 298 340 210 8 125 93 74 15 16 6 M14 165 195 4 13 24
50 340 398 235 8 135 103 84 15 16 6 M14 190 230 4 13 34
65 395 482 270 9 155 123 104 15 15 6 M14 225 280 4 15 42
80 445 560 300 9 170 138 118 15 15 8 M14 260 335 4 15 75
100 538 665 340 10 190 158 138 15 15 8 M14 300 380 4 15 124

For Type AS:

nominal
diameter 		Structure Dimension Thickness δ Flange Bolt Footing Weight(kg)
H L1 L
D D1 D2 d b n Th. L2 L3 n d
20 218 223 145 7 90 65 50 11 14 4 M10 115 125 4 11 10.8
25 237 252 170 7 100 75 60 11 14 4 M10 130 140 4 11 12.8
32 265 292 195 7 120 90 70 14 16 6 M12 145 165 4 11 16.9
40 298 340 210 8 130 100 80 14 16 6 M12 165 195 4 13 24.2
50 340 398 235 8 140 110 90 14 16 6 M12 190 230 4 13 34.2
65 395 482 272 9 160 130 110 14 16 6 M12 225 280 4 15 42.6
80 445 560 306 9 190 150 128 18 18 8 M16 260 335 4 15 76.7
100 535 665 346 10 210 170 148 18 18 8 M16 300 380 4 15 126
