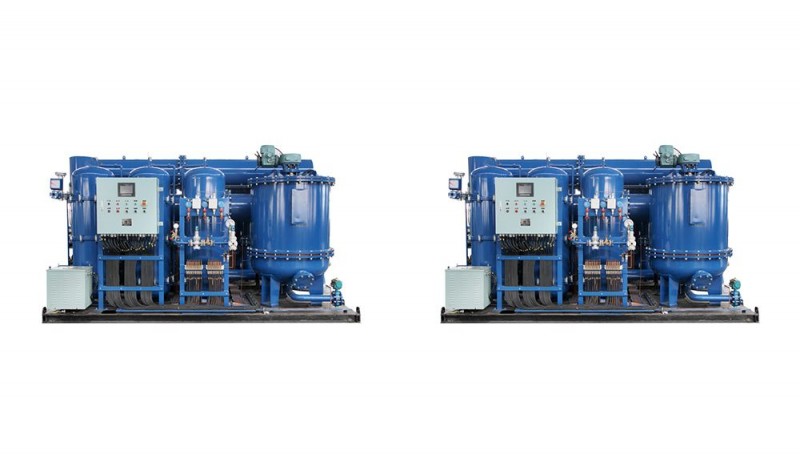

JB Marine Ballast Water Management System

Description:

Process: "JB ballast water management system" is our company to meet the rules of IMO, D - 2 and developed a new system. The system USES 50 microns section self-cleaning filter first remove bulky particles, and then by microfiltration membrane to remove all size microorganisms and bacteria, inert gas, nitrogen at the same time.
Ballast, ballast water through the filter unit, membrane separation unit, into the ballast tank after filtration, separation, filling the nitrogen at the same time, the filtered concentrate directly to the outboard.
Uninstall: ballast pump will hold ballast water directly to the yard.
Filter unit: 50 microns filter unit first to remove most of the solid particles and microorganisms, ballast water is controlled by differential pressure or set a time to recoil of each stainless steel filter, flushing is accomplished in an instant, the water consumption, to ensure the processing flow. Rinses the creature into the home port, are not of the alien species.
Membrane separation unit + control unit: the company after years of development, has developed for large flow microfiltration membrane of ballast water treatment, and adopt various measures to ensure its bigger flux, the life test show that the membrane life can reach more than 4 years, after the separation unit treatment of ballast water, more than 10 microns creature is almost zero, and bacteria, and to ensure that the discharge water quality conform to the requirements of the D - 2 standard. Control unit can be automatic and manual control of the whole system, and can real time record run data, troubleshooting tips and other relevant information.
Nitrogen making device: nitrogen making device has already been widely used in the oil tank of oil tanker explosion protection system, especially the relevant Suggestions, prevent water ballast tank corrosion, it is recommended to use inert gas protection. Using PSA alternate adsorption oxygen and nitrogen in the air, concentration can be as high as 99.99%, and less power consumption.
System features.
1, in addition to nitrogen, this system does not add any material, no impact on the environment.
2, this system USES modular design, suitable for all kinds of new and old ships.
3, this system filter unit, the membrane separation unit of backwash water from its own filtered water, do not need any external water supply.
4, this system energy conservation province electricity, operation cost is low.
5, this system filter unit, the membrane separation unit of backwash concentrate immediate discharge to port waters, very little sediment into the ballast tanks, can reduce a lot of tank cleaning work.
6, this system adopts the PSA technology of preparation of pure nitrogen added to the ballast water chamber, will not change, the water quality does not produce any secondary substances affect the environment, the crew and the general public.
Nitrogen in 7, the system has excellent corrosion protection for ballast bulkhead, reduce the corrosion of the hull.
8, this system is easy to operate, low maintenance cost.
Certificate: now get CCS, BV, LR, NK, ABS, AMS (USCG) certificate.

Technical Data:

Technical data 2:
