Gooseneck Air Pipe Head CB/T3594-94 Type B/BS
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Gooseneck Air Pipe Head CB/T3594-94 Type B/BS:
China Gooseneck Air Pipe Head CB/T3594-94 Type B/BS:

Air Pipe Head is called air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES, FS.

Technical Specification:

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

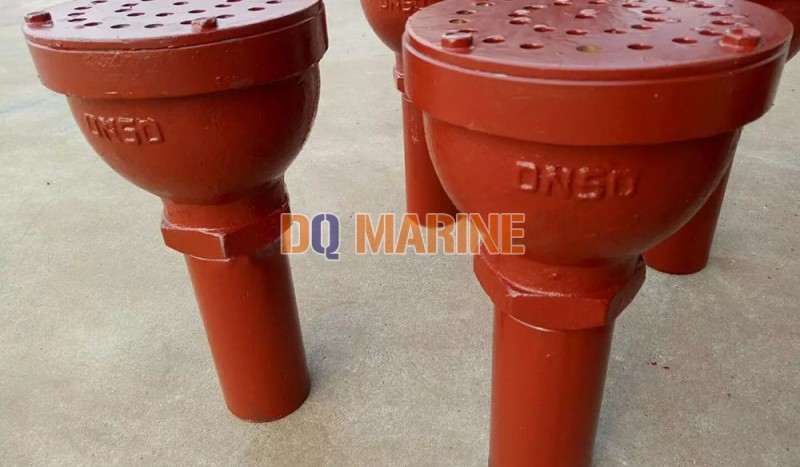

Gooseneck Air Pipe Head also can be manufactured with thread connection.

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 above the air pipe of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 above the air pipe of oil tank
E/ES Float Disc Type Air Pipe Head for Water Tank above the air pipe of water tank
FS Float Ball Type Air Pipe Head for oil &water Tank above the air pipe of oil &water tank
Main Material:

1-Body: Cast Iron

2-Float Ball: SUS304

3-Grid: Carbon Steel

Main Size List for Type B/BS(mm):

DN H1 D S δ D2 D3 b2 n d0 b1 b L n2 Weight
50 120 140 70 7 135 103 15 6 15 6 3 78 4 5.2
140 110 16 4 14 5.92
65 150 175 80 8 155 123 14 6 15 88 7.29
160 130 16 4 14 7.47
80 170 195 100 170 138 14 8 15 108 8.2
190 150 18 4 18 9.66
100 195 235 125 190 158 14 8 15 133 16.1
210 170 18 4 18 16.69
150 230 280 175 11 240 208 14 12 15 5 183 18.4
265 225 20 8 18 20.4
200 270 320 220 295 264 15 12 15 6 228 22.1
320 280 22 8 18 23.18
250 310 370 270 12 365 327 16 14 17 278 28.7
375 335 24 12 18 32.29
