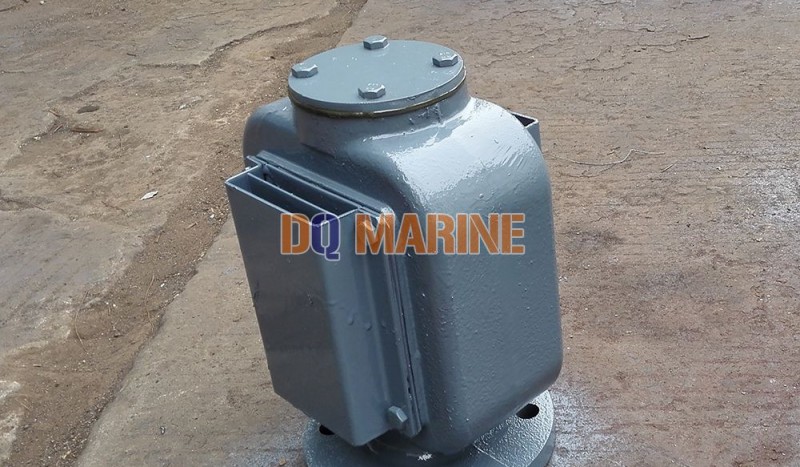

Float Ball Air Vent Head CB/T3594-94 Type FS
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Float Ball Air Vent Head CB/T3594-94 Type FS:
China Float Ball Air Vent Head CB/T3594-94 Type FS:

Air Pipe Head CB/T3594-94 Type FS is air pipe head with float ball, which can be used on the oil or water tank.

Air Pipe Head is called air vent head, air pipe joint. It is a kind of check valve used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES, FS.

Technical Specification:

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank
E/ES Float Disc Type Air Pipe Head for Water Tank on the air pipe top of water tank
FS Float Ball Type Air Pipe Head for oil &water Tank on the air pipe top of oil & water tank
Main Material:

1-Body: Cast Iron

2-Float Ball: SUS304

3-Protective Cover: Carbon Steel

Main Size List for FS Type(mm):
nominal
diameter
structure dimension Thickness
δ
flange connection dimension float ball
diameter
s
weight(kg)
L L1 H D D1 D2 b n d0 Oil tank Water tank
50 125 160 250 7 165 125 102 20 4 18 65 12.50 12.60
65 170 200 285 7 185 145 122 20 4 18 88 19.10 19.20
80 200 225 325 7 200 160 133 20 8 18 105 22.40 22.60
100 245 275 380 8 220 180 158 22 8 18 130 34.10 34.40
125 300 325 440 8 250 210 184 22 8 18 150 49.30 49.80
150 345 370 510 9 285 240 212 24 8 22 190 94.70 95.70
200 450 475 630 9 340 295 268 24 8 22 245 157.00 158.00
250 565 590 750 10 395 350 320 26 12 22 305 222.00 223.00
300 670 700 870 11 445 400 370 26 12 22 345 302.00 304.00
350 780 820 1020 12 505 460 430 26 16 22 450 459.00 461.00
