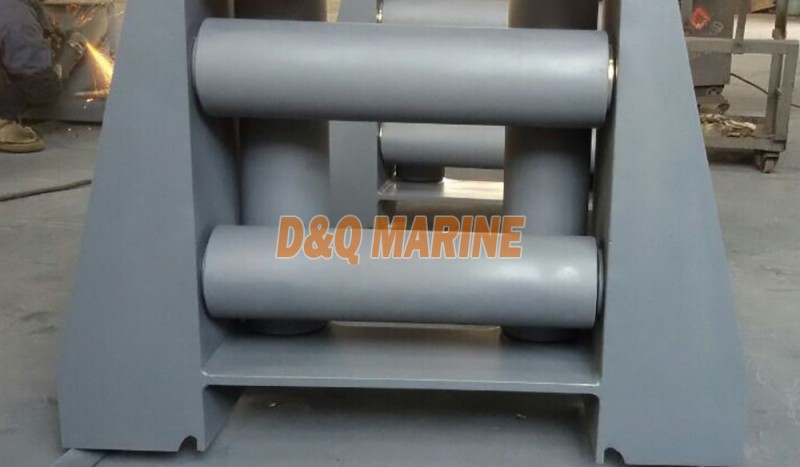

FA4 Serie Roller Fairlead
FA4 Serie Roller Fairlead
Description:
Provide CCS , BV , LR , BV etc Certificate
Material:cast steel ZG230-450,carbon steel Q235
Surface: Blasting,Epoxy.
Good wear and corrosion resistance
Drawing:
Size Chart:
| Type | rope dia(mm) | Dimension(mm) | Mass(kg) | |||
| A | B | C | D | |||
| FA4-12 | 12 | 180 | 100 | 650 | 80 | 76 |
| FA4-16 | 16 | 230 | 130 | 800 | 100 | 130 |
| FA4-20 | 20 | 250 | 130 | 900 | 120 | 220 |
| FA4-24 | 24 | 280 | 160 | 1000 | 140 | 330 |
| FA4-32 | 32 | 300 | 160 | 1200 | 180 | 580 |
| FA4-40 | 40 | 320 | 180 | 1360 | 245 | 1100 |
| FA4-48 | 48 | 400 | 250 | 1700 | 300 | 2210 |
