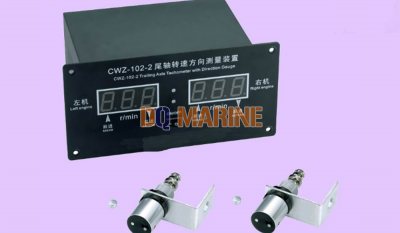

CWZ-102-2 Stern Shaft Speed Direction Measuring System:
CWZ-102-2 Stern Shaft Speed Direction Measuring System Introduction
CWZ-102-2 stern shaft speed measuring device adopts microcomputer control, powerful detection, and reliable. Electrical controller box can display the speed of the starboard and portside engine simultaneously, used for double engine ship, accurate and visual, stable reading, Green color with green arrow means move ahead, red color with red arrow means move astern, orange color means stop.
This device adopts non-contact magnetic induction, high sensitivity, large induction distance, small magnetic steel for speed measuring, and more convenient than gear speed measuring system, and easy to install. Can spread 2 sets electrical control box or 2 sets CWZ-102D1, CWZ-102E1 stern shaft tachometer
CWZ-102-2 Main Technical Parameter
Power supply: DC 24V ± 20% (or AC 220V)
Measuring range: ± 20~± 999 r/min
Sensitivity: 0.5% ± 1 word
CWZ-102-2 Installation Size
Overall size: 260x130x200mm
Installation hole opening size: 218x98mm
Fixed thread hole size: 240x112, 4-Ф5mm.
