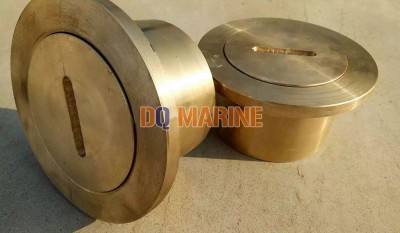

Brass Flush Sounding Pipe Head
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Brass Flush Sounding Pipe Head:
China Brass Flush Sounding Pipe Head:

Brass Flush Sounding Pipe Head is called as brass plug, sounding head, inject head.

Seal Test Way: with the water pressure 0.11Mpa, and last for 5minutes.

Standard: CB/T3778-1999, JIS F3002

Material:

1-Body: Brass

2-Cover: Brass

3-Gasket: NBR

Main Size List(mm):
DN H D1 D2 D3 a B d D b Weight(kgs)
40 60 64 50 70 34 6 M45*3 90 6 0.96
50 65 76 62 82 34 6 M60*3 113 6 1.4
65 70 96 82 102 34 6 M76*3 125 6 1.82
80 75 109 93 115 55 10 M90*3 145 10 2.81
100 80 134 118 140 55 10 M115*3 170 10 4.62
150 100 188 172 194 55 10 M165*3 210 10 9.58
