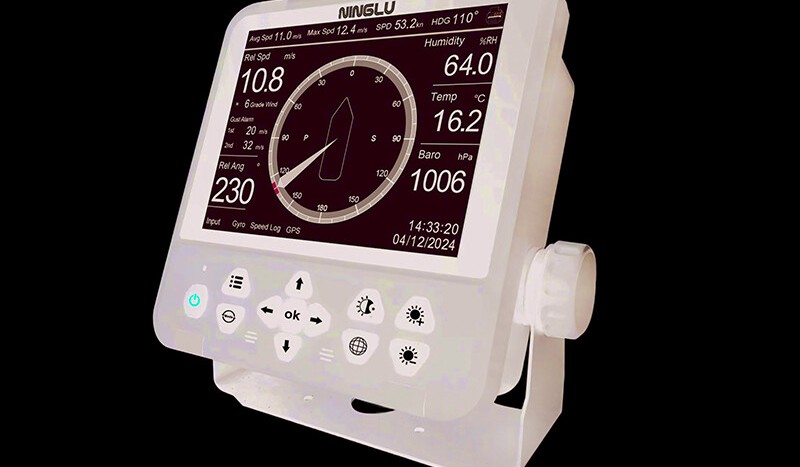

AM706D 8 Inch TFT Marine Anemometer
China AM706D 8 Inch TFT Marine Anemometer:
AM706D 8 Inch TFT Marine Anemometer
Display：8 inch TFT 800x480 pixels
Power Supply: DC24V/AC100～ 240V
Wind Range: 0 ～359°
Direction Accuracy: ±1°
Speed Accuracy: 0. 1m/s
Speed Range: 0～70m/s
Startup Wind Speed：≤1.2m/s
Data Input：NMEA0183(RMC/HDT/VBW)
Data Output：NMEA0183(MWV/MDA)
Humidity：10～ 90% Relative
Storage Temperature： Display:-20～+55°C
Sensor：-20～+85°C
Operating Temperature：Display:-15～+55°C
Sensor:-15～+85°C
Protection: Display：IP23
Sensor：IP56
