Aluminum Sounding Pipe Plug
China Aluminum Sounding Pipe Plug:

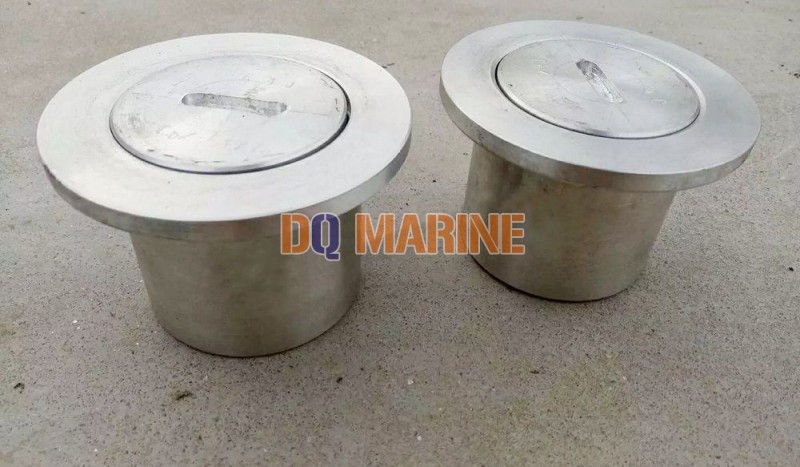

Aluminum Sounding Pipe Plug is used on the aluminum boat to reduce the total weight of the boat.
Sounding pipe plug is also called as sounding pipe head, sounding head, inject head.
Seal Test Way: with the water pressure 0.11Mpa, and last for 5minutes.
Standard: CB/T3778-1999, JIS F3002
Material:
1-Body: Aluminum
2-Cover:Aluminum
3-Gasket: NBR
Main Size List(mm):
| DN | H | D1 | D2 | D3 | a | B | d | D | b | Weight(kgs) |
| 40 | 60 | 64 | 50 | 70 | 34 | 6 | M45*3 | 90 | 6 | 0.96 |
| 50 | 65 | 76 | 62 | 82 | 34 | 6 | M60*3 | 113 | 6 | 1.4 |
| 65 | 70 | 96 | 82 | 102 | 34 | 6 | M76*3 | 125 | 6 | 1.82 |
| 80 | 75 | 109 | 93 | 115 | 55 | 10 | M90*3 | 145 | 10 | 2.81 |
| 100 | 80 | 134 | 118 | 140 | 55 | 10 | M115*3 | 170 | 10 | 4.62 |
| 150 | 100 | 188 | 172 | 194 | 55 | 10 | M165*3 | 210 | 10 | 9.58 |
