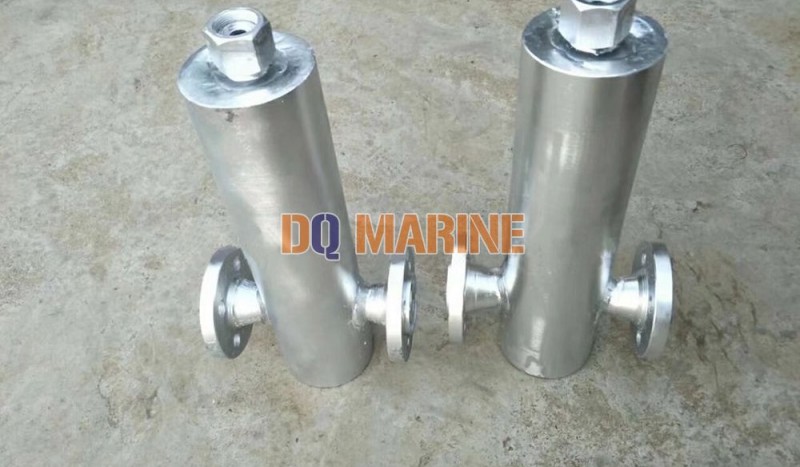

Air Water Separator CB/T3572-94
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Air Water Separator CB/T3572-94:
China Air Water Separator CB/T3572-94:

Air Water Separator CB/T3572-94 is used to separate the air and water in the marine compressed air pipe system.

Specification:

Standard: CB/T3572-94, CBM1034-81 (Flange size as per JIS)

Type Working Pressure Nominal Diameter
A,AS 3.0Mpa DN20~50
B,BS 3.0Mpa DN20~80

Type A---Air water separator,Flange standard: GB569

Type AS--Air water separator,Flange standard: GB569

Type B---Automatic drainage air water separator,Flange standard: GB569

Type BS---Automatic drainage air water separator,Flange standard: GB2501

Main Parts & Material:

Body, Elbow---Seamless Steel Pipe

Cover, Coupling, Flange, Flap---Carbon Steel

Float---Stainless Steel

Test Method:

1. Strength Test: Hydraulic pressure 4.5Mpa and last 5 minutes, and no leakage.

2. Airtight Test: 3.0Mpa test pressure, put the air water separator into the water, or apply the soapy water on the welding points & joints, no leakage in 5 minutes.

3. Type B/BS can work normally when inclined 16°.

Main Size:

Type A:

Nominal Diameter Structure Size Flange Size Bolt Connection Thread Weight
DN H H1 H2 L D0 δ D D1 D2 D5 D6 b d0 Th n d1 kg
20 370 333 253 218 89 5.5 105 73 58 35 51 16 13 M12 6 M27*1.5 7.28
25 370 333 253 218 89 5.5 115 83 66 42 58 18 15 M14 6 M27*1.5 7.6
32 370 333 253 218 89 5.5 125 93 74 50 66 20 15 M14 6 M27*1.5 8.01
40 520 478 338 324 168 7 145 107 84 60 76 22 17 M16 6 M36*2 25.94
50 520 478 338 324 168 7 155 117 96 72 88 23 17 M16 6 M36*2 27.4

Type AS:

Nominal Diameter Structure Size Flange Size Bolt Connection Thread Weight
DN H H1 H2 L D0 δ D D1 D2 D5 D6 b d0 Th n d1 kg
20 370 333 253 218 89 5.5 105 75 58 35 51 16 14 M12 4 M27*1.5 7.52
25 370 333 253 218 89 5.5 115 85 68 42 58 16 14 M12 4 M27*1.5 7.68
32 370 333 253 218 89 5.5 140 100 78 50 66 18 18 M16 4 M27*1.5 8.51
40 520 478 338 324 168 7 150 110 88 60 76 18 18 M16 4 M36*2 27.61
50 520 478 338 324 168 7 165 125 102 72 88 20 18 M16 4 M36*2 28.4

Type B

Nominal Diameter Structure Size Flange Size Bolt Weight
DN H H1 H2 L L1 D10 D0 δ D D1 D2 D5 D6 b d0 Th n kg
20 660 450 95 340 130 280 159 7 105 73 58 35 51 16 13 M12 6 40.78
25 660 450 95 340 130 280 159 7 115 83 66 42 58 18 15 M14 6 41.51
32 660 450 95 340 130 280 159 7 125 93 74 50 66 20 15 M14 6 42.49
40 830 560 140 340 152 345 203 7 145 107 84 60 76 22 17 M16 6 65.87
50 830 560 140 340 152 345 203 7 155 117 96 72 88 23 17 M16 6 67.23
65 830 560 140 340 152 345 203 7 175 137 118 94 110 21 17 M16 8 68.64
80 830 560 140 340 152 345 203 7 190 152 130 105 121 23 17 M16 8 70.91
Type BS:

Nominal Diameter Structure Size Flange Size Bolt Weight
DN H H1 H2 L L1 D10 D0 δ D D1 D2 D5 D6 b d0 Th n kg
20 660 450 95 340 130 280 159 7 105 75 58 35 51 16 14 M12 4 40.97
25 660 450 95 340 130 280 159 7 115 85 68 42 58 16 14 M12 4 41.56
32 660 450 95 340 130 280 159 7 140 100 78 50 66 18 18 M16 4 43.05
40 830 560 140 340 152 345 203 7 150 110 88 60 76 18 18 M16 4 66.07
50 830 560 140 340 152 345 203 7 165 125 102 72 88 20 18 M16 4 68.39
65 830 560 140 340 152 345 203 7 185 145 122 94 110 22 18 M16 8 70.23
80 830 560 140 340 152 345 203 7 200 160 133 105 121 24 18 M16 8 72.84
