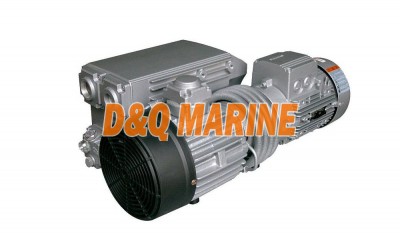

Marine Air Pump
Marine Air Pump
CYBW series marine air pump is the oil-free self lubricating sliding-vane air pump, which has the features of small size,light weight,energy-saving and clean exhausted air with no oil pollution,etc.It is designed specially as the auxiliary equipment for marine sanitary sewage disposal system.
Model Explanation
For the Model CYBW-25
C stand for Marine pump
Y stand for Air pump
B stand for Sliding-vane
W stand for oil-less self-lubricating
25 stand for air flow(m3/h)
Technical parameter:
| Model | flow rate | pressure | Motor power | Inlet pipe diameter | outlet pipe diameter | ||
| Q(m3/h) | (Mpa) | (kw) | (mm) | (mm) | |||
| CYBW-6 | 6 | 60 | 0.25 | 16 | 16 | ||
| CYBW-10 | 10 | 60 | 0.37 | 16 | 16 | ||
| CYBW-15 | 15 | 60 | 0.55 | 20 | 20 | ||
| CYBW-20 | 20 | 60 | 0.75 | 20 | 20 | ||
| CYBW-25 | 25 | 60 | 1.1 | 27 | 27 | ||
| CYBW-40 | 40 | 60 | 1.5 | 27 | 27 | ||
