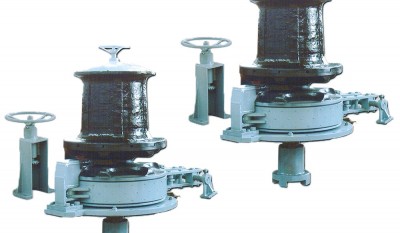

90Kn Electric Anchor Capstan 1
6.6-153Kn Electric Anchor Capstan 1

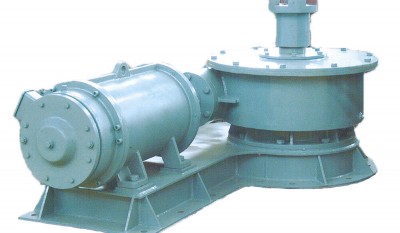

Electric anchor capstan is mainly used for anchoring or mooring in ships and law enforcement boats. It adopts wear-resistant marine cable drum, marine worm gear reducer, marine brake control motor, main electric control box and main controller for IP56 type and base.
Technical specifications
| Working Loads (KN) | Speed (m/min) | Chain Dia. (mm) | Power (KW) |
| 143/153 | 10.5/11 | 58/60 | 45/45/30 |
| 124/133.3 | 12/12.5 | 54/56 | 45/45/30 |
| 106.3/115 | 9./9.5 | 50/52 | 30/30/22 |
| 90/98 | 10/10.5 | 46/48 | 30/30/22 |
| 75/82.3 | 14/14.5 | 42/44 | 30/30/22 |
| 61.4/68 | 14.8/15.6 | 38/40 | 30/30/22 |
| 49.1/55.1 | 14.2/15 | 34/36 | 22/22/16 |
| 43.5/49.1 | 13.5/14 | 32/34 | 22/22/16 |
| 33.3/38.3 | 11.5/12 | 28/30 | 11/11/7.5 |
| 24.5/28.7 | 14/15.5 | 24/26 | 16/16/11 |
| 15.34/20.57 | 14.5/15 | 19/22 | 6/2.5 |
| 10.88/13.02 | 12/13.5 | 16/17.5 | 4.3/1.7 |
| 6.64/8.33 | 11.5/13 | 12.5/14 | 3/1.2 |
