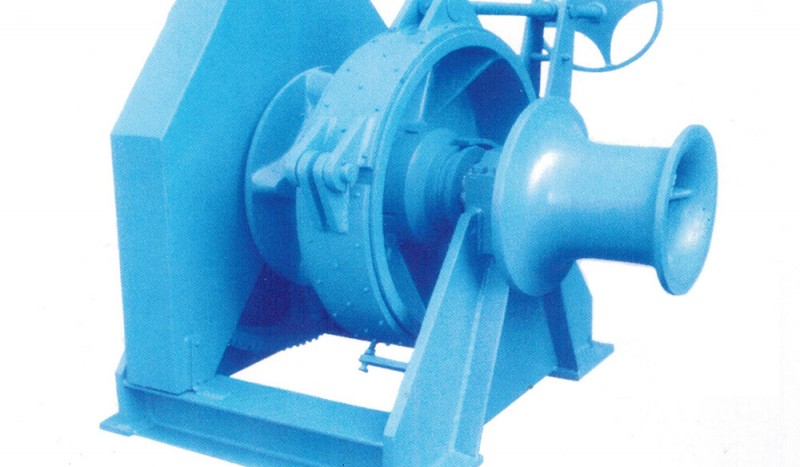

60mm Hydraulic Anchor Winch
Category:
Hydraulic winch
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
60mm Hydraulic Anchor Winch:
17.5-78mm Hydraulic Anchor Winch

The hydraulic anchor winch is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether.The abchor winch mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual winch), an electric winch has an electric motor, and a hydraulic winch has a hydraulic pumping station.

Drawing

Technical Specifications

Dia.of
Chain Wheel
(mm)
Working Load
(Kn)
Over Loading
Pulling Force
(Kn)
Holding Load
(Kn)
Nominal Speed
(m/min)
Warping Load
(Kn)
AM2 AM3 AM2 AM3 AM2 AM3
17.5 13.0 14.6 19.5 21.9 80 115 9 8
19 15.3 17.2 23.0 25.8 95 135 9 10
20 17.9 20.0 26.9 30.0 110 157 9 10
22 20.6 23.0 30.9 34.5 126 180 9 15
24 24.5 27.4 36.8 41.1 149 214 9 20
26 28.7 32.1 43.1 48.2 175 250 9 20
28 33.3 37.2 50.0 55.8 202 289 9 20
30 38.3 42.8 57.5 64.2 231 330 9 30
32 43.5 48.6 65.3 72.9 261 374 9 30
34 49.1 54.9 73.7 82.4 294 421 9 30
36 55.1 61.6 82.7 92.4 329 470 9 30
38 61.4 68.9 92.1 103.4 365 522 9 40
40 68.0 76.0 102.0 114.0 402 576 9 40
42 75.0 83.8 112.5 125.7 442 632 9 50
44 82.3 92.0 123.5 138.0 483 691 9 50
46 89.9 100.5 134.9 150.8 526 753 9 50
48 97.9 109.4 146.9 164.1 570 816 9 50
50 106.3 118.8 159.5 178.2 617 882 9 50
52 114.9 128.4 172.4 192.6 664 950 9 80
54 123.9 138.5 185.9 207.8 713 1021 9 80
56 133.3 149.0 200.0 223.5 764 1093 9 80
58 143.0 159.8 214.5 239.7 816 1168 9 80
60 153.0 171.0 229.5 256.5 870 1245 9 80
62 163.4 182.6 245.1 273.9 925 1324 9 100
64 174.1 194.6 261.2 291.9 982 1405 9 100
66 185.1 206.9 277.7 310.4 1040 1488 9 100
68 196.5 219.6 294.8 329.4 9098 1573 9 100
70 208.3 232.8 312.5 349.4 1160 1660 9 100
73 226.5 253.1 339.8 379.7 1254 1794 9 125
76 245.5 274.4 368.3 411.6 1350 1932 9 125
78 258.6 289.0 387.9# 433.5 1416 2026 9 125
