NEK606 Medium Voltage Power Cables P3 or P3/P10 RFOU/TFOU 6/10KV
  • NEK606 Medium Voltage Power Cables P3 or P3/P10 RFOU/TFOU 6/10KV

NEK606 Medium Voltage Power Cables P3 or P3/P10 RFOU/TFOU 6/10KV

Request a QuoteDownload Catalogue pdf file
We can supply according to your requirement.

Description

6/10KV Marine Cable P3 or P3/P10 RFOU type and TFOU type cables are flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

IEC 60092-353

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

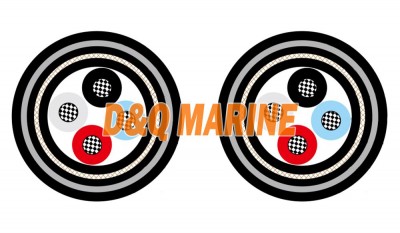

Construction

  • Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2.
  • Conductor Screen : Semi conducting material.
  • Insulation : Halogen-free EPR. XLPE can be offered as an option (for TFOU cable).
  • Insulation Screen : Semi conducting material and tinned copper wire braid.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P3), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P3/P10),coloured red.

Technical Data

Nominal Cross Section Area mm² 16 25 35 50 70 95 120
Nominal Conductor Diameter mm 5.2 6.5 7.4 8.7 10.3 12.2 13.8
Maximum DC Resistant@20℃ Ω/km 1.16 0.734 0.529 0.391 0.27 0.195 0.154
Continuous Current Rating@45℃1 Core A 96 127 157 196 242 293 339
Continuous Current Rating@45℃3 Core A 67 89 110 137 169 205 237
Short Circuit Current 1s A 2290 3580 5010 7150 10020 13590 17170
Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10
Nominal Cross Section Area mm² 150 185 240 300 400 500 630
Nominal Conductor Diameter mm 15.1 17 19.6 21.9 24.5 27.5 32.3
Maximum DC Resistant@20℃ Ω/km 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
Continuous Current Rating@45℃1 Core A 389 444 522 601 690 780 890
Continuous Current Rating@45℃3 Core A 272 311 365 421 483 546 623
Short Circuit Current 1s A 21460 26470 34340 42930 57230 71540 90140
Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.
